Walking down a bustling retail aisle, consumers rarely notice the structural framing above them. They simply expect shelving tiers to hold heavy merchandise securely. But a sudden collapse shatters this illusion instantly. A structural failure in a retail environment leads to catastrophic problems. It results in damaged merchandise, severe legal liability, and lasting brand reputation loss. Unfortunately, fixture buyers often prioritize visual aesthetics over strict structural mechanics. This common oversight leads to unverified load claims and dangerous shop floors. We must shift our focus toward verifiable strength and safety. This guide provides a transparent, engineering-based framework for evaluating fixture load capacities. You will learn how to specify, test, and validate custom retail displays accurately. By prioritizing structural mechanics, you can ensure safe, reliable performance for every unit deployed.
Load capacity is not just about material thickness; it is a calculation of geometry, material yield strength, and weight distribution.
Heavy-load applications (like a metal beverage rack) require dynamic load considerations, not just static resting weight.
Trustworthy manufacturers validate theoretical calculations (FEA) with physical destructive and non-destructive testing.
Evaluating a vendor’s engineering competence mitigates downstream risks of sagging shelves, tipping hazards, and structural fatigue.
Engineering a robust fixture is a delicate balancing act. You must carefully navigate the line between structural risk mitigation and sensible material utilization. When a brand under-engineers a fixture, disaster follows quickly. Shelving units buckle under heavy products. This leads to broken inventory, disrupted floor space, and potential injury claims. Conversely, over-engineering creates a different set of business problems. Overbuilding adds unnecessary weight. Heavy units drastically inflate freight costs and waste material spend. Your goal is achieving the exact balance needed for safe operation.
Compliance and safety guidelines strictly dictate retail environments. Store owners enforce rigorous standards. They require specific tipping angles and strict maximum shelf deflection limits. If a shelf bows visibly under weight, consumers perceive it as dangerous. They will avoid interacting with your display entirely. Safety standards protect both the consumer and the retailer.
A successfully engineered fixture meets several core success criteria simultaneously. First, it maintains an attractive aesthetic footprint. Second, it offers functional modularity for store associates. Third, it incorporates a mathematically verified safety margin. Achieving these three criteria ensures long-term operational success on the shop floor.

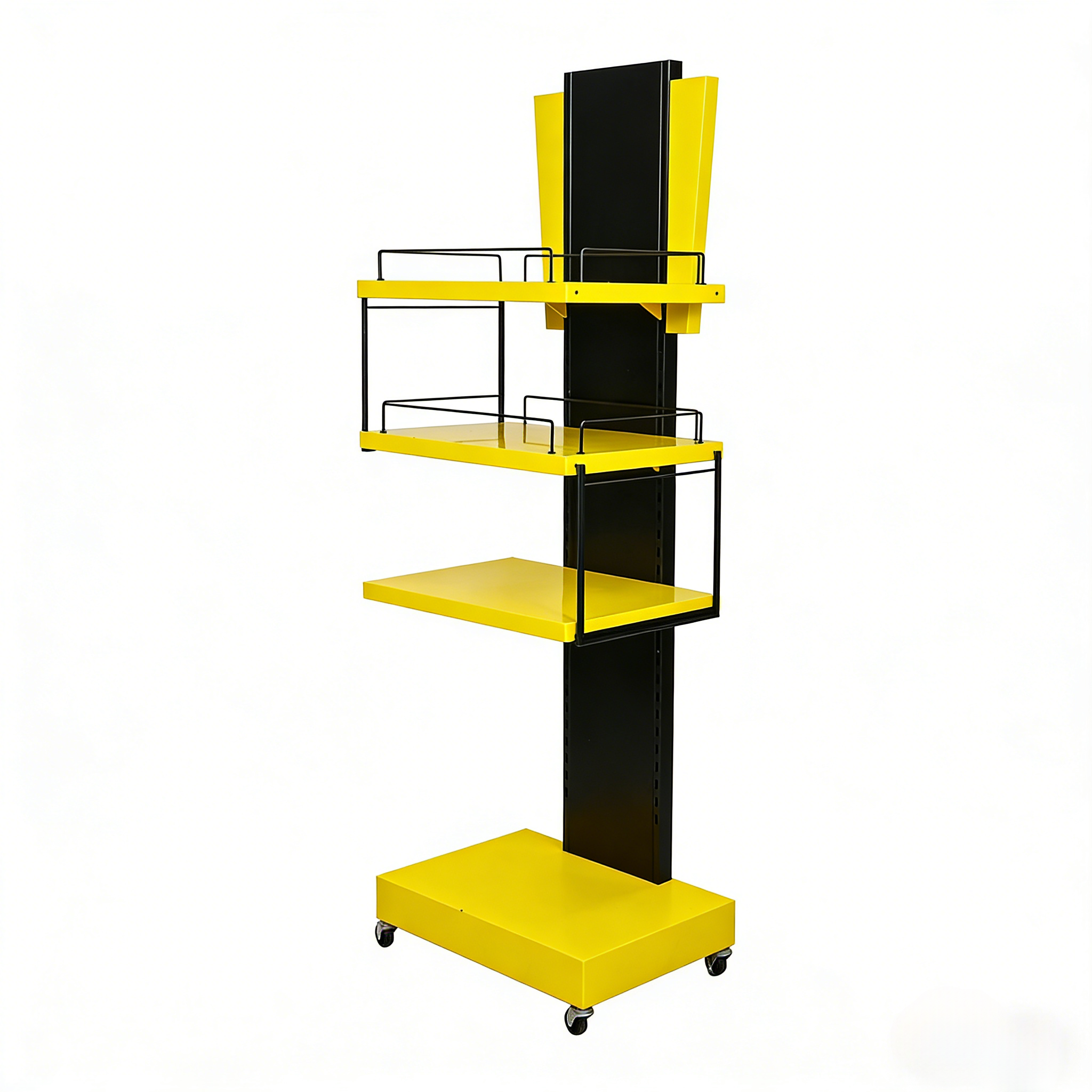

Every reliable Metal Display Stand begins with foundational engineering principles. You cannot guess structural integrity. Engineers calculate it using specific variables. Material selection, gauge thickness, and weight distribution profiles form the baseline of these calculations.
Material Selection significantly influences final load capacities. Engineers carefully compare the yield strengths of different base metals. Yield strength defines the stress point where a material begins to deform permanently. Mild carbon steel remains the industry standard. It provides excellent tensile strength and cost efficiency. Stainless steel offers similar strength but adds inherent corrosion resistance. This makes it ideal for grocery or damp environments. Aluminum provides a lightweight alternative. However, aluminum requires thicker profiles to match the load-bearing capabilities of carbon steel.
Summary Chart: Structural Material Yield Strengths
Material Type | Typical Yield Strength (MPa) | Primary Retail Application |
|---|---|---|
Mild Carbon Steel | 250 - 350 | Heavy duty racks, gondolas, standard framing. |
Stainless Steel (304) | 215 - 250 | Corrosive environments, premium visual displays. |
Aluminum (6061-T6) | 240 - 275 | Lightweight modular systems, mobile endcaps. |
Gauge and wall thickness directly impact performance. However, thicker material is not automatically better. Adding pure mass increases freight weight and cost. Instead, structural shape matters more. Tubular profiles, like square or rectangular tubing, resist bending forces exceptionally well. They outperform flat sheet metal of the same thickness. The hollow geometry distributes mechanical stress efficiently across the outer walls.
Weight distribution profiles dictate how engineers plan the shelf structure. Products do not rest evenly in all scenarios. We define these loads in two primary ways:
Uniformly Distributed Load (UDL): This represents standard retail merchandise spacing. Boxes or lightweight items spread evenly across the entire shelf surface.
Point Loading: This occurs when heavy, dense, or irregularly shaped objects sit in isolated spots. Point loads create intense localized stress zones.
Point loading requires careful case context. Consider how a Metal Beverage Rack functions. Liquids are incredibly heavy and dense. Furthermore, liquid shifts dynamically as consumers pull bottles forward. This shifting weight demands specialized point-load engineering. Engineers must reinforce the front lips and specific tier sections to handle these high-density loads without buckling.
Engineers maximize strength through smart geometry rather than sheer material volume. They employ specific fabrication techniques to prevent lateral sway and shelf bowing. Gussets are small triangular steel plates. Welders install gussets inside 90-degree corners to lock the frame in place. Welded cross-bracing uses diagonal bars across the rear frame. This transfers horizontal loads downward into the base. Additionally, engineers specify flanged edges on flat shelves. Bending the sheet metal edge downward creates a rigid lip. This simple geometric fold exponentially increases the shelf’s resistance to bending.
How you connect metal components dictates the overall unit strength. Joints often become the weakest link under heavy stress. We must compare various joinery methods.
TIG/MIG Welding: Continuous welding fuses two metal pieces into one solid structure. This provides maximum shear strength. It prevents the frame from twisting under shifting loads.
Mechanical Fasteners: Bolts and heavy-duty rivets allow for modular assembly. However, bolts can loosen over time due to floor vibrations. Engineers must use lock washers or specialized thread adhesives.
Interlocking Tabs: Some designs use laser-cut slots and tabs. These require minimal hardware. While cost-effective, they typically support lower weight capacities than fully welded joints.
A strong shelf means nothing if the entire unit falls over. Base stability prevents catastrophic tipping hazards. Engineers must calculate the center of gravity accurately. Products load asymmetrically as consumers shop. If the top shelf remains full while the bottom shelf empties, the center of gravity shifts dangerously high. Engineers solve this by extending the footprint ratio. They widen the base frame to counterbalance top-heavy loads. Furthermore, they evaluate leveling feet weight ratings. A fixture holding 500 pounds requires heavy-duty steel leveling feet, not standard plastic glides.
Validating load capacity happens in two distinct phases. First, we calculate it theoretically. Second, we break it physically.
Finite Element Analysis (FEA) serves as the theoretical foundation. Engineers use advanced software to simulate structural physics before cutting any metal. The software creates a 3D mesh of the proposed fixture design. Engineers input the exact merchandise weight, material properties, and floor conditions. The FEA software visualizes stress, strain, and deflection points. It highlights vulnerable joints in bright red. This allows engineers to reinforce weak zones digitally. It saves immense prototyping time and material costs.
Next, engineers apply the "Safety Factor" multiplier. Retail environments are inherently unpredictable. Store associates drop boxes forcefully onto shelves. Consumers lean heavily against frames. Therefore, engineers never build a shelf precisely to its limit. If a display needs to hold 100 pounds, they engineer it to hold 150 to 200 pounds. This 1.5x to 2x safety margin accounts for inevitable retail abuse. It ensures absolute structural safety under worst-case scenarios.
Finally, theoretical numbers demand physical prototyping and validation. Software cannot account for microscopic welding variations. Manufacturers perform static load testing first. They place the maximum stated weight onto a prototype shelf. They leave it there for 72 hours or more. Afterward, they measure for permanent deflection. If the shelf bends and does not return to flat, it fails. Manufacturers also execute dynamic impact testing. They drop dense weights onto the shelf to simulate aggressive merchandise stocking. This physical validation guarantees the engineering checks out in reality.
Choosing a fabrication partner determines your long-term success. You must evaluate their internal engineering capabilities rigorously. Aesthetically pleasing prototypes do not guarantee structural safety on a massive scale.
First, look for transparency in their design assumptions. A reliable vendor asks highly specific questions before quoting a project. They will ask about product dimensions, product weight, and packaging styles. They will ask if the retail floor is carpeted or tiled. Floor conditions affect base stability. If a vendor offers a price without understanding your physical merchandise, walk away immediately.
Second, demand concrete proof of concept. Do not accept verbal assurances. Require FEA reports during the initial design phase. Ask to see the stress heat maps. During the prototyping phase, request physical load-test documentation. A competent manufacturer gladly provides videos of their destructive testing protocols. They want to prove their structural integrity.
Third, verify scalability and quality control. A prototype might hold the weight perfectly. But what happens during a 5,000-unit production run? You must confirm their quality control systems. Ask how they monitor weld consistency across multiple shifts. Verify their material sourcing reliability. Inconsistent steel batches will drastically alter your final load capacities. They must test random units pulled directly from the mass production line.
Use strict shortlisting logic to avoid risky partners. Watch out for glaring red flags. Avoid vendors who guarantee massive weight limits without asking for your product specifics. Avoid factories lacking in-house engineering teams. If they outsource their structural calculations, they lose control over the final safety validation.
Moving a fixture from an aesthetic concept to a structural reality requires rigorous mechanical discipline. You cannot rely on material thickness alone. True load capacity stems from smart geometry, precise material selection, and rigorous physical testing. By understanding uniformly distributed loads and safety multipliers, you protect your inventory and your consumers.
Partnering with a data-driven, engineering-first fabrication partner remains the only reliable way to ensure retail compliance. These partners validate their designs through sophisticated FEA software and brutal physical prototyping. This proactive approach mitigates legal liability and protects your valuable brand assets. Take action today to secure your retail footprint. Consult with qualified engineering teams to run an initial structural assessment or FEA on your existing display designs.
A: Capacity is determined by gauge, grade, and structural geometry, not just the material itself. A well-engineered stainless steel unit might hold anywhere from 50 to 300 pounds per tier. It depends heavily on the Uniformly Distributed Load (UDL) spacing and the presence of sub-shelf reinforcements.
A: The conceptual framework involves taking the material yield strength, adding the profile's moment of inertia, and dividing by the unsupported span length. However, manual calculation is risky. You need dedicated Finite Element Analysis (FEA) software to simulate accurate real-world stresses and joint vulnerabilities.
A: Industry standards typically utilize an L/144 deflection limit for standard shelving. This means the acceptable bowing equals the shelf length divided by 144. Beyond specific engineering math, the visual limit matters most. If bowing appears visually unsafe to a consumer, it fails the retail test.
A: High-density liquids create concentrated point loads and shifting dynamic weights. A beverage unit requires specialized engineering to combat these forces. It needs thicker gauge tubing, reinforced front lips, and a widened base frame to prevent tipping when consumers remove heavy bottles from the lower tiers.
